WRAP TODAY.  SAVE MONEY TOMORROW.

MADE IN THE U.S.A USING HIGH QUALITY MATERIALS
HEAT & WATER
RESISTANT

ERS Home.png

Fiberglass Cloth: Outer Lining

Construction

  • Fiberglass base fabric that has been impregnated with a specially formulated silicone rubber compound for extended life

  • Silicone coating is rated 500˚F on a continuous basis

  • The cloth is designed for preparing high temperature removable pads, flange and valve covers.



Benefits

  • The fabric is impregnated with a high temperature, flame retardant, silicone rubber which provides greater life and improved resistance to abrasion, flexing, tear and puncture.

  • Provides greater oil and water resistance than uncoated fabrics

  • Silicone cloth is an excellent moisture barrier, making it a staple of the outdoor insulation industry

  • The outer layer of ERS Wrap is a silicone/fiberglass cloth. ​

Base Fabric

  • Weight: 12.6 ± .4 oz./sq. yd.

  • Gauge: .0135 ± .002.

  • Count W & F: 4 harness satin.

  • Width: 60˝.

Specifications Silicone Fabric.JPG

Specifications

  • Weight: 17.0 oz./sq. yd. nominal.

  • Thickness: .018˝ nominal.

  • Tensile Strength: 350 lb./in. avg. warp., 300 lb./in. avg. fill.

  • Trapezoidal Tear Strength: Too high to measure.

  • Upper Use Temperature: 500°F.

  • Color: Silver aluminum.

  • Width: 60˝ nominal.



Inner Lining:  Temp Mat

Construction

  • Provides reliable performance at temperatures up to 1,200˚F

  • There are no binders in Tempmat. Instead, long textile fibers have been accurately chopped to provide maximum density, high insulation and strong physical properties

  • TempMat is a mechanically bonded glass fiber insulating blanket of uniform density

  • We typically use 1/2" tempmat but ERS Wrap is also available in 1/4” and 1” thicknesses

Benefits

  • Tempmat is non-corrosive, non-combustible, non-alkaline and chemically stable

  • Tempmat offers excellent heat resistance, flexibility and low thermal conductivity

Specification for temp mat.JPG

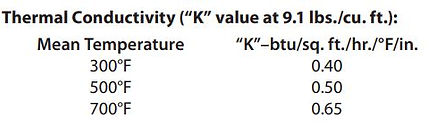

Specifications Temp Mat K value.JPG
Specification tempmat Physical Properties.JPG


KEVLAR THREAD

Construction

  • The KEVLAR® thread is incredibly strong and flame resistant (up to 427°C)

  • Ideal for sewing silicone, teflon, and other fiberglass fabrics



Benefits

  • made for demanding temperature applications

  • It is five times stronger than steel with outstanding flame resistance

ERS Specifications Kevlar thread.JPG


FASTERNER:  HOOK AND LOOP

Construction

  • Nylon, 8 mil monofilament top yarn with Acrylic binder

Benefits

  • Heat and water resistant

  • Ease of application/installation

Specifications hook and loop.JPG
